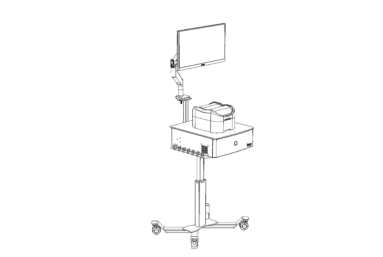

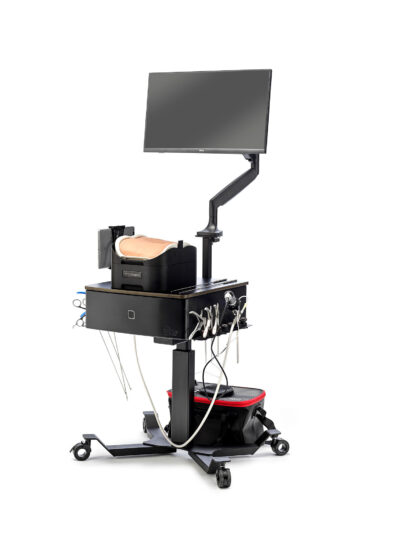

SpineHUB Pro Setup Manual

Step 1

When opening your simulator it
is recommended that you unpack all package contents and arrange them before starting construction.

Step 2

Start the assembly of your sim station by screwing the 4x bolts into the underside of the base. You can do this using the allen key provided.

Step 3

Now the base is attached to the main column you are ready to attach the top box.

Step 4

Locate the 4x bolts provided to attach the top box.

Step 5

Insert two bolts into the side of the
sim station main column and top box, screwing in place with the allen key provided.

Step 6

Ensure the bolts are finger tightened initially whilst you move onto the next step.

Step 7

Repeat this process on the other side of the sim station.

Step 8

Tighten all screws with allen key provided. The top box should now be securely attached to the main column.

Step 9

Locate the main column lead on the underside of the sim station box.

Step 10

Secure the lead in place with the connector as shown.

Step 11

Taking the Z-shaped monitor bracket attach to the underside of the top box of the sim station using the 2x nuts provided.

Step 12

Tighten the nuts to ensure the bracket is secured in place.

Step 13

Locate the angled tv bracket arm. (There are further instructions included with the monitor arm should you require them).

Step 14

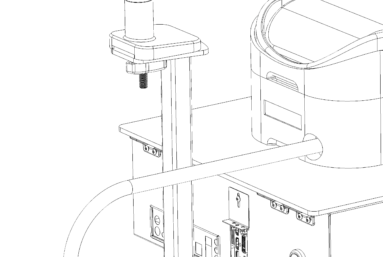

Insert the bolt on the base of the the monitor stand into the hole on the top of the Z-shaped bracket now attached to the sim station.

Step 15

Locate the handle and tighten onto the underside of the bolt as indicated.

Step 16

Ensure the bolt is tightened.

Step 17

Locate 4x bolts and thread through the bracket and into the back of the monitor.

Step 18

Ensure the bolts are securely tightened.

Step 19

Place the LumbarBox Extended sim onto the sim station shelf.

Step 20

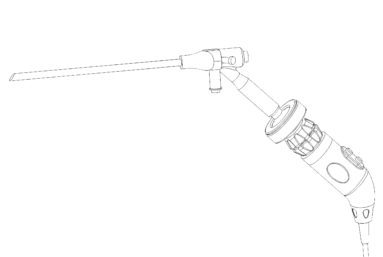

• Attach the camera coupler to the eyepiece of the scope and plug the camera into the back of the sim station.

Step 21

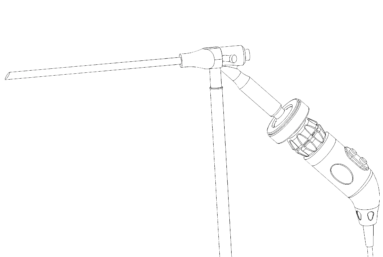

• Connect the one end of the fibre optic cable to the endoscope as shown.

Step 22

Insert the fibre optic cable into the back of the sim station.

Step 23

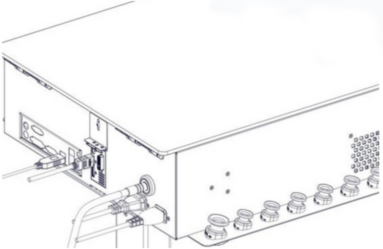

Plug the power cables into the relevant ports at the back of the sim station as shown. (Please note the monitor stand is not shown here just for clarity of plug positioning)

Step 24

Plug the 3 cables into the relevant ports in the underside of the monitor.

Step 25

Connect the Fluid Management System

• Attach the large clear water tube to the rear water inlet port of the Endoscopic LumbarBox Extended.

Step 26

Set Up the Water Pump and Water Bag

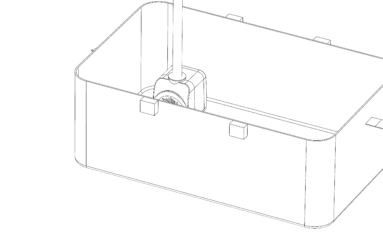

• Place the water pump inside the water bag.
• Attach the narrow inflow tube to the top connector of the pump..

Step 26

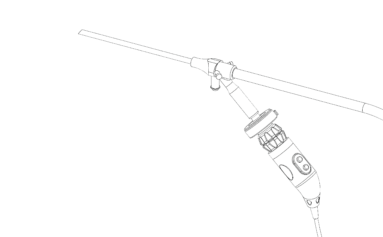

• Feed the narrower fluid tube now connected to the pump, through the meshed panel in the lid of the water bag connecting the other end into the back of the endoscope.

Step 27

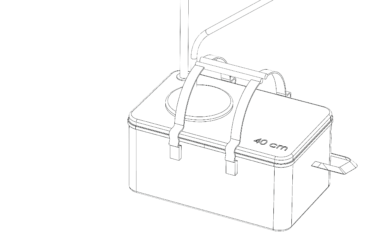

• Connect the wider outflow tube that is connected to the back of the Endoscopic LumbarBox Extended to the outflow connector on the top of the water bag.
• Fill the water bag up with water ensuring it is at a level over the depth of the pump.

Setting the water level

Fill the Endoscopic LumbarBox Extended base unit with water up to the water sensor panel shown here.

The sensor sounds an alarm if the water inside the base reaches a too high level.
